Installing Generic Configuration Microservices in Azure

This section helps you to install the Generic Configuration Microservice into Azure cloud.

Procedure:

1. Create the CONFIG_SERVICE_HOME directory.
2. Extract the ms-genericconfig-package-azure-<release>.zip release bundle file into the CONFIG_SERVICE_HOME directory.

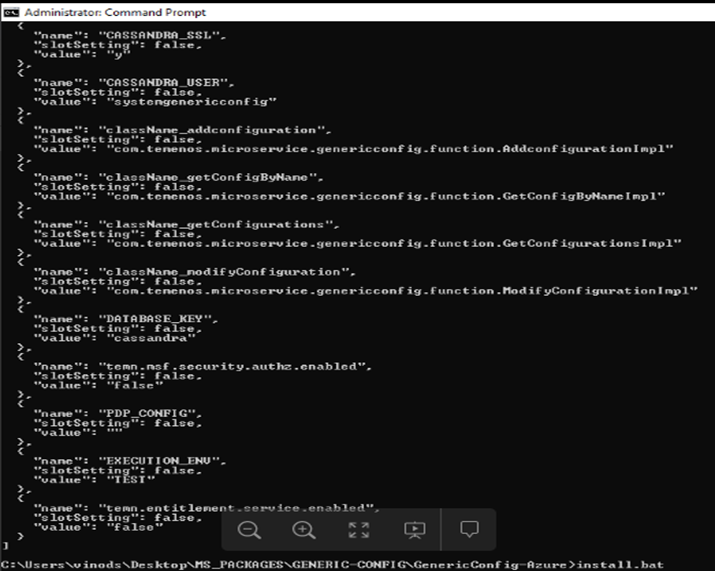

3. To make the microservice up and running, execute the following command to create AZURE resources.
   • Windows: Install.bat
   • Linux: Install.sh



4. Verify Generic Config Microservice:
   • Verify get configuration by name API.

     Name	Detail
     URI	/system/configurationGroups/{groupId}/configuration/{configName}
     Method	GET
     Sample-URL	https://genericconfigapp.azurewebsites.net/api/v1.0.0/system/configurationGroups/SECURITY.POLICY/configuration/default
     Sample-Response	[{ "message": "Configuration file does not exists:", "code": "404" }]

   • Verify get all configurations API.

     Name	Detail
     URI	/system/configurationGroups/{groupId}/configuration
     Method	GET
     Sample-URL	https://genericconfigapp.azurewebsites.net/api/v1.0.0/system/configurationGroups/SECURITY.POLICY/configuration
     Sample-Response	[{ "message": "Configuration file does not exists:", "code": "404" }]

5. To stop and remove the existing resources, execute the following command.
   • Windows: Destroy.bat
   • Linux: Destroy.sh

Import Policy into Configuration Server

Policy files are available under the HOLDINGS_SERVICE_HOME directory.

To add a policy file into generic-config database, use the following API.

https://genericconfigapp.azurewebsites.net/api/v1.0.0/system/configurationGroups/SECURITY.POLICY/configuration/BalanceViewer

{
	"id": "BalanceViewer",
	"name": "BalanceViewer policy file",
	"version": "1.0.0",
	"configData": {
		"data": "PD94bWwgdmVyc2lvbj0i",
		"configType": "xml"
	}
}

{
	"id": "BalanceViewer",
	"name": "BalanceViewer policy file",
	"version": "1.0.0"
}

To modify a policy file available in generic-config database, use the following API.

https://genericconfigapp.azurewebsites.net/api/v1.0.0/system/configurationGroups/SECURITY.POLICY/configuration/BalanceViewer

{
	"version": "1.0.0",
	"configData": {
		"data": "PD94bWwgdmVyc2lvbj0i",
		"configType": "xml"
	}
}

{
	"id": "BalanceViewer",
	"name": "BalanceViewer policy file",
	"version": "1.0.0"
}
