AWS Deployment Artefacts

Marketing Catalog Microservices for AWS deployment is available as single release bundle. For example, ms-marketingcatalog-package-aws-<release_number>.zip. It consists of the ms-marketingcatalog-package-aws-<release_number>.jar file and AWS script files.

1. The install-aws.sh/install-aws-postgresql.sh/install-aws-ms.sh script is used to deploy the Marketing Catalog Microservices in AWS.
2. Use the respective destroy-aws.sh/destroy-aws-postgresql.sh/destroy-aws-ms.sh script to undeploy and remove the resources.

•

The OAS Swagger json document is available in the location /ms-marketingcatalog-package-aws-<release_number>.jar/api/marketingcatalog.yaml path.

Deployment of Marketing Catalog Microservice in AWS:

AWS CLI and Python 2.7.x must be installed prior to the deployment.

DynamoDB

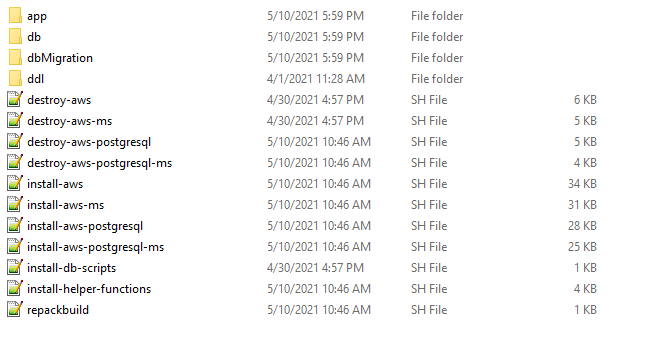

1. Obtain the generated zip file (from target folder) in the installation directory. Unzip it.
2. In order to enable deployments on multiple environments(dev,uat,prod etc) for same microservices within same account , set DEPLOYMENT_ENVIRONMENT variable with the respective value.
3. To enable the in-house authentication in addition to API key, perform the JWT Authentication in the installation scripts.
4. Perform the XACML configurations in the installation scripts to enable security policies and access rights to the APIs
5. Perform Keycloak configuration in ingester container to enable third party authentication.
6. Verify the below properties related to ingestion in the install script.

Environment Variable	Description	Example
temn_msf_schema_registry_url	URL of the schema registry	http://localhost:8081
HTTP_BASE_PATH	Base path of the IRF provider container	http://<IP>:<PORT>/irf-provider-container/api/v1.0.0/
HTTP_RESOURCE_PATH	Resource path of IRIS API used by marketing catalog Microservice - "product/{productId}/productConditions"	product/{productId}/productConditions

7. In AWS command line, navigate to the installation directory
8. Modify the region information in the install-aws.sh script specific to your installation

Examples:

• --region us-west-2
• --event-source-arn arn:aws:kinesis:us-west-2
• --uri arn:aws:apigateway:us-west-2:lambda:path/2015-03-31/functions/arn:aws:lambda:us-west-2

9. To deploy the Microservice, execute shell script to create the resources

Script	Description
install-aws-ms.sh	To deploy only the components necessary for Microservice. Data Event Streaming (DES) is presumed to deployed and running already. The streaming services will not be deployed.
install-aws.sh	To deploy all the necessary components for a Microservice including streaming services will be deployed, in order to run the Microservice independently.

10. Post-deployment login into AWS portal and verify the lambda and API gateways are created properly.

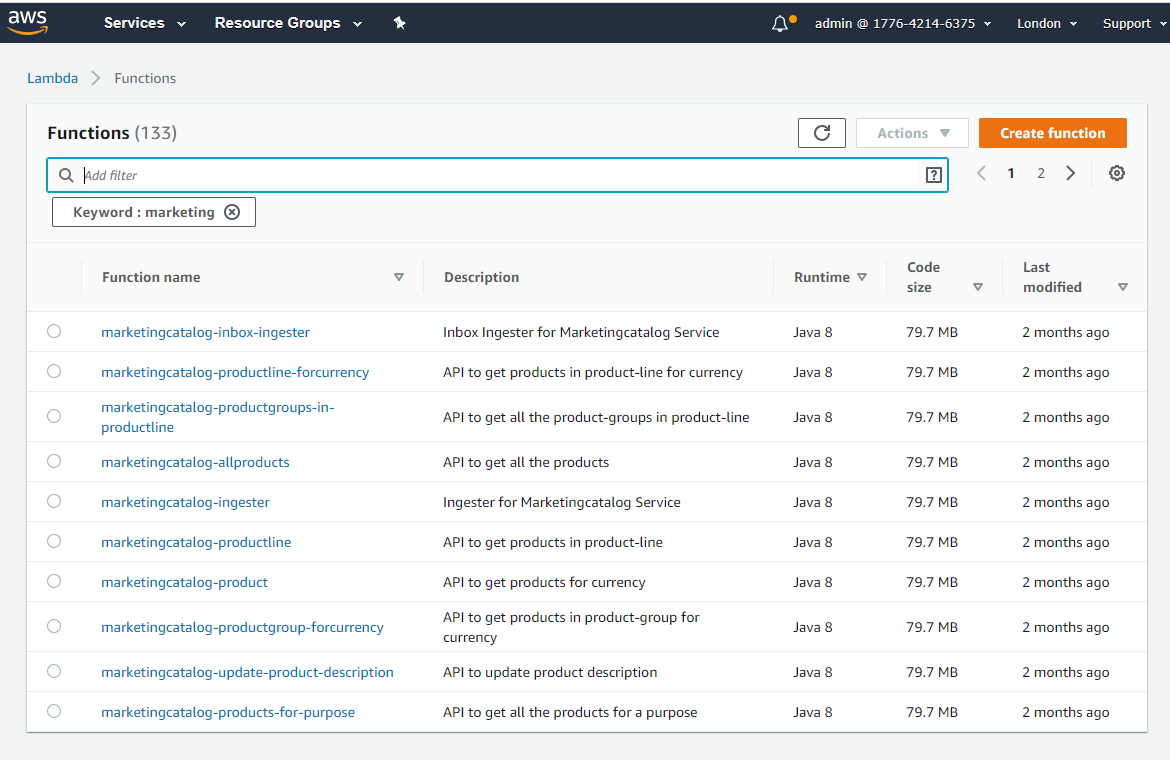

Lambda Functions

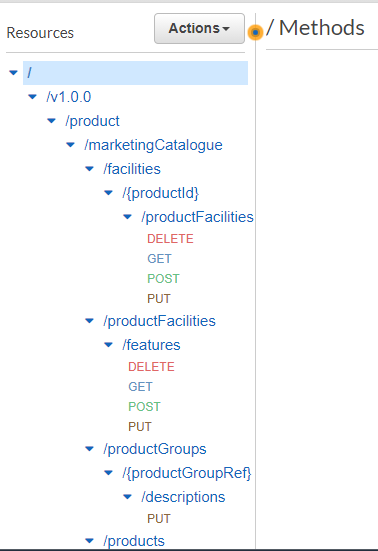

API Gateways

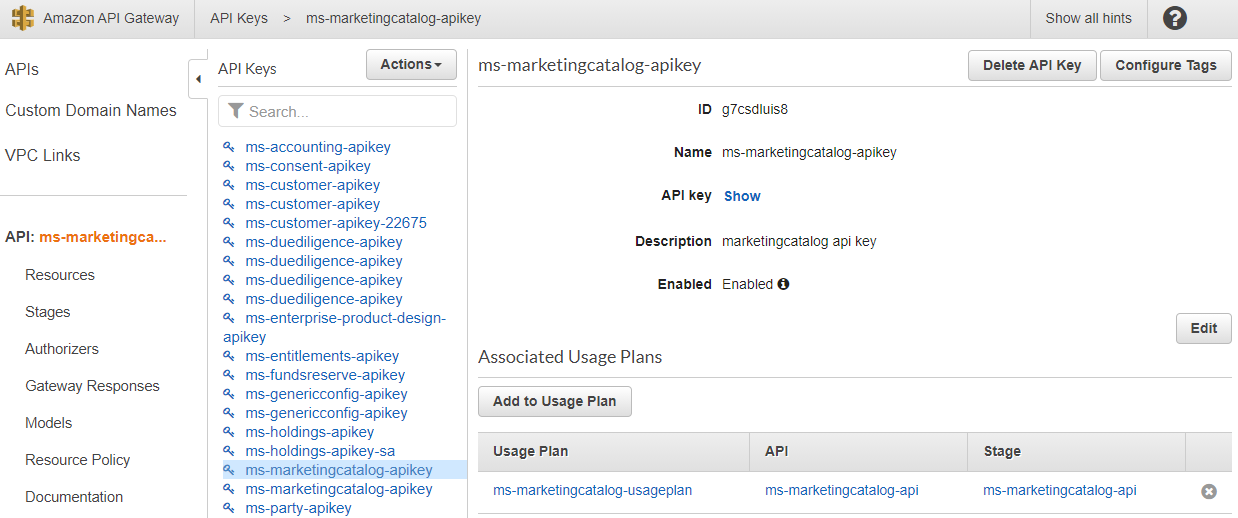

11. To obtain the API key for all the endpoints in AWS, navigate to API Key section under the Amazon API gateway and select the corresponding API key, then click on show. The API key has to be a part of header (x-api-key) in all the requests.

12. After the successful deployment database, collections and the reference data(master data) are loaded into the dynamo database for marketing catalog Microservice.

13. The Base path of the API gateway URL follows the below structure

Rest API Id can be obtained from Amazon API Gateway

Location and deployment Id should be replaced with the appropriate values provided in the script during deployment.

PostgreSQL

1. Obtain the generated zip file (from target folder) in the installation directory. Unzip it.
2. Inorder to enable deployments on multiple environments(dev,uat,prod etc) for same microservices within same account , set DEPLOYMENT_ENVIRONMENT variable with respective value.
3. To enable the in-house authentication in addition to API key, perform the JWT Authentication in the installation scripts.
4. Perform the XACML configurations in the installation scripts to enable security policies and access rights to the APIs
5. Perform Keycloak configuration in ingester container to enable third party authentication.
6. Verify the below properties related to ingestion in the install script.

Environment Variable	Description	Example
HTTP_BASE_PATH	Base path of the IRF provider container	http://<IP>:<PORT>/irf-provider-container/api/v1.0.0/
HTTP_RESOURCE_PATH	Resource path of IRIS API used by marketing catalog Microservice - "product/{productId}/productConditions"	product/{productId}/productConditions
temn_msf_schema_registry_url	URL of the schema registry	http://localhost:8081

7. In AWS command line, navigate to the installation directory

8. Modify the region information in the install-aws-postgresql.sh script specific to your installation

Examples:

• --region us-west-2
• --event-source-arn arn:aws:kinesis:us-west-2
• --uri arn:aws:apigateway:us-west-2:lambda:path/2015-03-31/functions/arn:aws:lambda:us-west-2

9. To deploy the Microservice, execute shell script to create the resources

Script	Description
install-aws-postgresql.sh	To deploy all the necessary components for a Microservice including streaming services will be deployed, in order to run the Microservice independently.
install-aws-postgresql-ms.sh	To deploy only the components necessary for Microservice. Data Event Streaming (DES) is presumed to deployed and running already. The streaming services will not be deployed

10. Post-deployment login into AWS portal and verify the lambda and API gateways are created properly.

Lambda functions

API Gateways

11. To obtain the API key for all the endpoints in AWS, navigate to API Key section under the Amazon API gateway and select the corresponding API key, then click on show. The API key has to be a part of header (x-api-key) in all the requests.

12. After the successful deployment database, collections and the reference data(master data) are loaded into the PostgreSQL database for marketing catalog Microservice.

13. The Base path of the API gateway URL follows the below structure

Rest API Id can be obtained from Amazon API Gateway

Location and deployment Id should be replaced with the appropriate values provided in the script during deployment.
