Azure Deployment Artefacts

This section shows the folder structure of Marketing Catalog package. Marketing-Catalog Microservices for Azure deployment is available as release bundles with respect to databases as ms-marketingcatalog -package-azure-mongo<release_number>.zip and ms-marketingcatalog -package-azure-postgresql<release_number>.zip .

Deployment of Marketing-Catalog Microservice in Azure

MongoDB

The install.sh/install.bat or install-ms.sh/install-ms.bat script is used to deploy the Marketing-Catalog Microservices in Azure.

The destroy.sh/destroy.bat script to undeploy and remove the Azure services created in Azure environment.

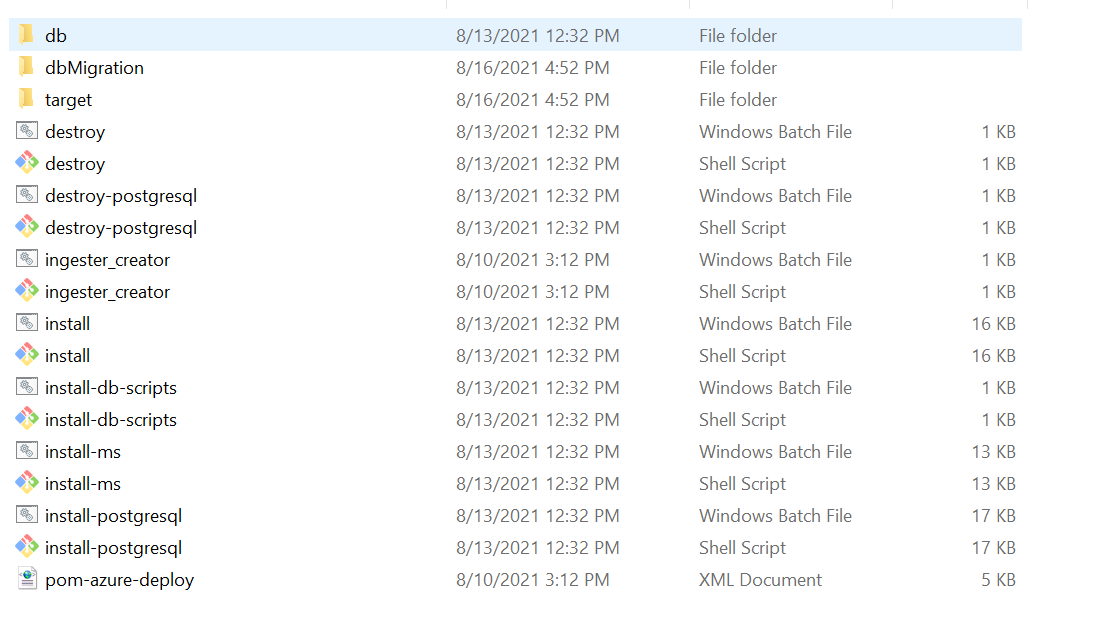

Folder structure for the ms-marketingcatalog -package-azure-mongo<release_number>.zip

Pom-azure-deploy.xml file is getting used to deploy the azure function into the azure portal.

Prerequisite: Azure CLI, Maven, Mongo shell should be installed prior to the deployment and an active connection string of Mongo Atlas cluster is required.

1. Obtain the generated zip file (from target folder) in the installation directory. Unzip it.
2. In command prompt, navigate to the installation directory.
3. For BackOffice Ingestion, Change it to respective IP address of HTTP_BASE_PATH url provided in install.bat/install.sh .Please refer Ingestion for more configurations.
4. Modify the Resource Group, Location, MONGODB_CONNECT_STR, MONGOSHELL_CONNECT_STR etc., in the install.sh/install.bat script specific to the installation. For example: SET MONGODB_CONNECT_STR="mongodb://Temenos:Temenos123@cluster0-shard-00-02.4o1ua.azure.mongodb.net:27017,cluster0-shard-00-00.4o1ua.azure.mongodb.net:27017,cluster0-shard-00-01.4o1ua.azure.mongodb.net:27017/ms_marketingcatalog?authSource=admin&gssapiServiceName=mongodb&replicaSet=atlas-vj913p-shard-0&ssl=true"

SET MONGOSHELL_CONNECT_STR="mongodb+srv://Temenos:Temenos123@cluster0.4o1ua.azure.mongodb.net"

5. Default mongo.js file(Master Data) will be inserted into the MongoDB through install.bat/.shfile. Please follow the steps below to insert data other than master data

1. Pre-requisite data can be loaded into Mongo DB through install-db-scripts.bat/.sh script file.
2. Data can be loaded only through script files(.js).
3. All the files need to be placed under folder path “ms-marketingcatalog-azure\target\azure-functions\<app folder>”.
4. Below are the parameters need to send while executing the bat file.

uri	need to provide Mongo string URL with username & password mentioned in the pre-requisite section
app_name	need to provide the app name which mentioned while deploying azure
scripts	need to provide the files names delimited by comma.

5. Command to execute

• For .bat file
  • install-db-scripts.bat --uri <uri> --app_name <app_name> --scripts "<filename1>,<filename2>"
  • Example :
    • install-db-scripts.bat --uri --mongodb+srv://test:test@cluster0.4o1ua.azure.mongodb.net --app_name marketingcatalogapp --scripts "mongo1.js,mongo2.js"
• For .sh file
  • install-db-scripts.sh --uri <uri> --app_name <app_name> --scripts <filename1>,<filename2>
  • Example :
    • install-db-scripts.sh --uri mongodb+srv://test:test@cluster0.4o1ua.azure.mongodb.net --app_name marketingcatalogapp --scripts mongo1.js,mongo2.js

6. The default Azure function app name in the script can be changed. In case of app name changes, the folder available (ms-marketingcatalog-azure\target\azure-functions\<app folder>\) in the name of the app should also be renamed.
7. To enable the in-house authentication in addition to the API key, perform the JWT Authentication in the installation scripts.
8. Perform the XACML configurations in the installation scripts to enable security policies and access rights to the APIs,
9. Perform Keycloak configuration in ingester container to enable third party authentication.
10. Execute install.sh or install.bat.

Script	Description
install sh / install.bat	To deploy all the necessary components for a Microservice including streaming services will be deployed, in order to run the Microservice independently.

11. Once the deployment is completed, Azure functions are created.
12. Login into the Azure portal and check whether the Resource Group and Function app is created.

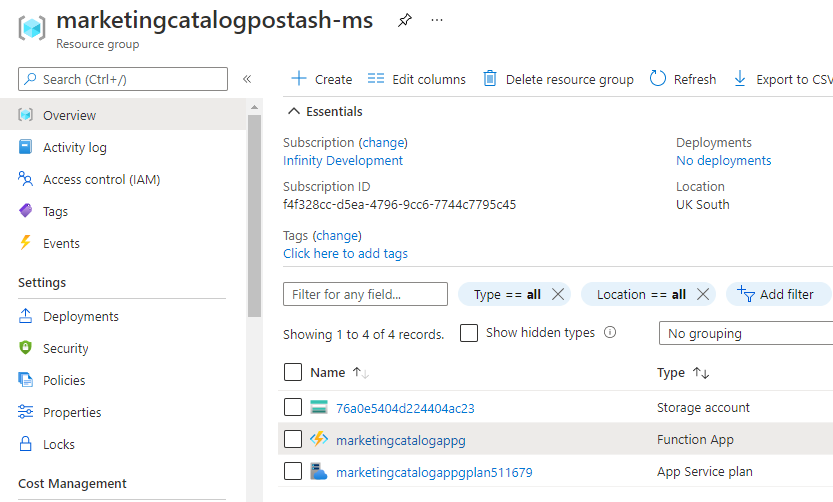

Resource Group:

Function App:

Marketing Catalog Functions:

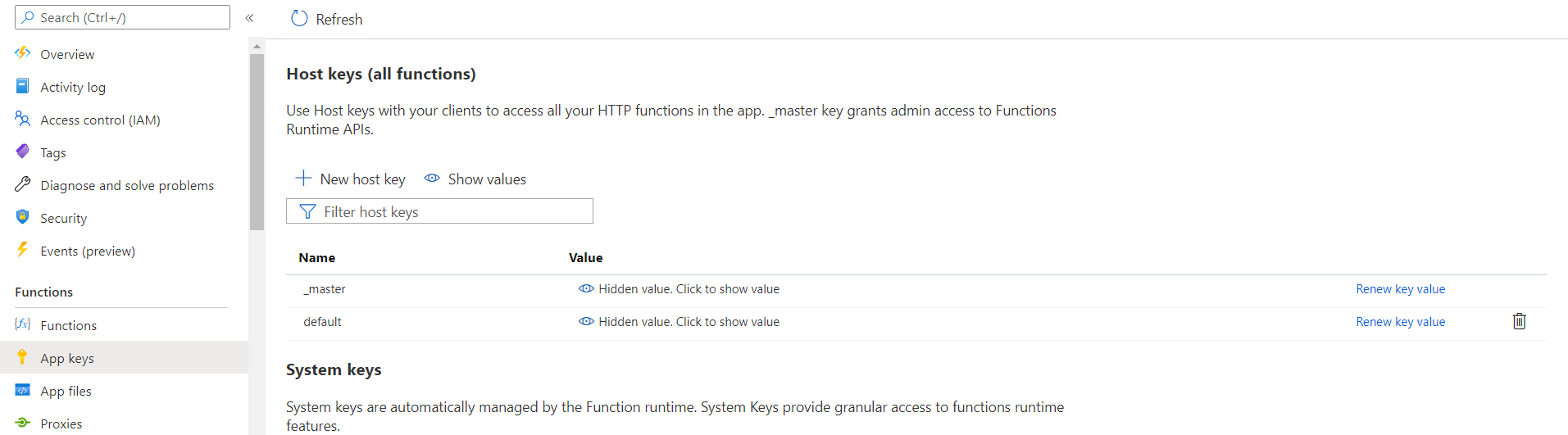

1. API key for each endpoint in the function app can be obtained using the command, func azure functionapp list-functions <function-app-name> --show-keys or can be obtained alternatively, from the Azure function GUI.

2. The endpoints of the azure function app can be obtained from the Azure Function App. Below is the URL of sample function.

3. The Get Function URL will provide the complete URL with API key.
4. After the successful deployment, database, collections and the reference data(master data) are loaded into the mongo server database for Marketing Catalog Microservice.
